CNC Automatic Stainless Steel Metal Bending Machine for Channel Letter Sign

FOB Reference Price:Get Latest Price
$9,000.00 - $10,000.00 / Yards | 1 Yard/Yards (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
China
Brand Name:
Z-Z Group
Model Number:
zzg 70069
Machine Type:
Bending Machine
Raw Material:
Stainless Steel
Material / Metal Processed:
Aluminum,Iron,Steel,etc
Power:
CNC
Automation:
Automatic
Extra Services:
Cut To Length
Certification:
ce
Size:
1180mm*603mm *1480mm
Weight:
421kg
Total Power:
2300W
Material:
Stainless steel,aluminum,iron and galvanized plate
Feeding Type:
Alternative feeding
Material Thickness:
0.3~1.2mm
Processing Height:
10~120mm
Minium Bending Radius:
R=5mm
Crooving Angel:
Compressed Air:
0.4~0.8Mpa
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Yard/Yards per Month
Packaging & Delivery
Packaging Details
Packed in Wooden Boxes
Port
Guangzhou,Huangpu
Lead Time :
Within 15 days
Product Description

CNC Automic Stainless Steel Metal Bending


Machine for Channel Letter Sign


This Bending Machine can process flat structure stainless steel,aluminum,iron,galvanized,all

kinds of flat metal material.



·Based on the comprehensively upgrading of the stainless steel bending machine,the accuracy of the highest machining material is 120mm,thickness can be processed to 1.2mm.


·We aodpted imported cylinder and Delta servo motor from Taiwan,to make it run stable and

gain a as long time life span as the bending machine can do.


·The machine surface is nickel plating treated,and guaranteed a longest time of anti-rust.



Detailed Images

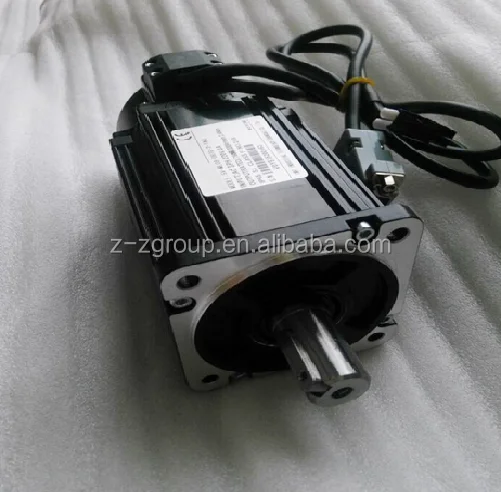

Servo Motor

High dimensional accuracy,accurate positioning

accurecy.

Very fast response,stable operation,with overload

capacity of 300%.

=============================================================================================

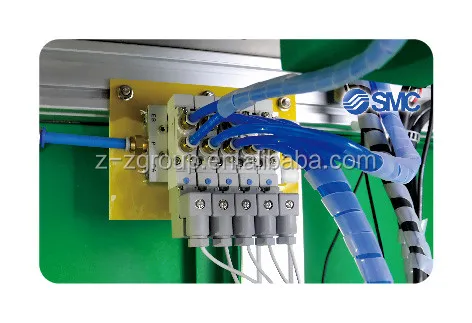

Electronic-magnetic Valve

The metal bending machine used the class quality SMC products,to ensure the service life of the

components.

With the industry's unique cylinder floating joint structure,the maxinum reduction of the failure rate,extended the use life of the cylinder.

=============================================================================================

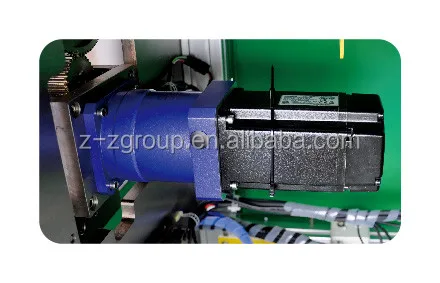

Bending Motor

Bending Motor and Slotting Motor are used in the Delta servo motor,import from Taiwan,control more accurate,more security.

=============================================================================================

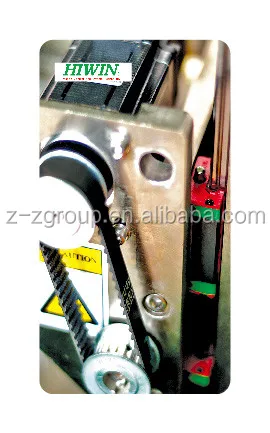

Feeding Structure

The CNC Automic Stainless Steel  Bending Machine used the class quality SMC products,to ensure the service life of the components,and using double

cylinder feeding mode,using the Taiwan HIWIN slinder,guide rail,to overcome the low accuracy,the dis-advantages of the skid.

=============================================================================================

Driving Gear

The transmission gears are processed by griding stage,the accuracy is more specific and the noise is smaller,make this stainless steel bending machine

run more efficient and quiter.

=============================================================================================

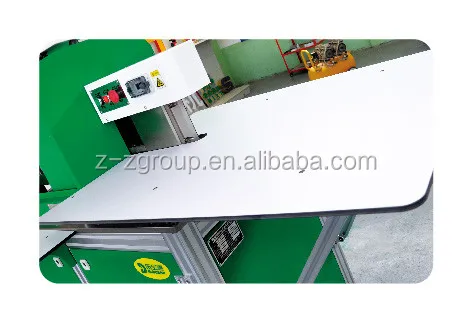

Operation Plate

The CNC metal bending machine selects a  10mm thickness of 6 series aluminum operating table,the oraval numerical control processing,surface anodic oxidation process,the bottom use aluminum alloy support,and makes it more durable.

=============================================================================================

Notch

This CNC aluminum iron stainless steel bending machine select the authentic Swedish ASSAB alloy slotting planer tool,makes it sharper,more durable

and more cost reduction.

Can be polished.

=============================================================================================

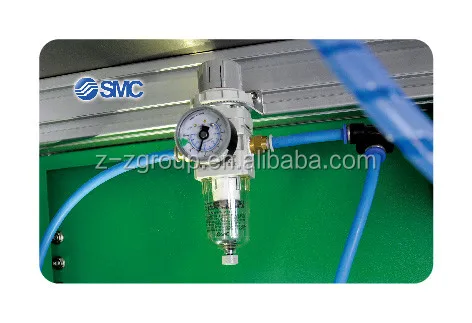

Moisture Trap

The CNC bending machine uses the first class quality SMC products,to

ensure the service life of the components.

=============================================================================================

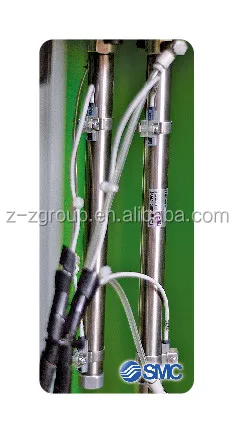

Beat Arc Cylinder

Using the class quality SMC products,to make sure the service life of the components,with the industry's unique cylinder floating joint structure,the maxinum reduction of the failure rate,extended the using life of the cylinder.

=============================================================================================

Slotted Structure

Hybrid servo motor,synchronous belt control,used

in the DEDLA servo motor,the control will be more

accurate and more security.

=============================================================================================

Switch

Humanization design with external computer starting power and USD interface.


Besides,we still have observation for checking the situation of gears and other components.

=============================================================================================

Paraments for the CNC stainless steel metal bending machine

Machine Size
1180mm*603mm*1480mm
Weight
421kg
Power Supply
220V/110V
Total Power
2300W
Compressed Air
0.4~0.8Mpa
Crooving Angel
Minium Bend Radius
5mm

Material
Flat stainless steel strip
Aluminum flat strip
Iron and galvanized plate
Servo Motor
3pc
Stepper Motor
1pc
Bending Thickness
0.3~1.2mm
Processing Height
10~110mm
Feeding Method
Automatic
Feeding Type
Alternative
File Format
DXF,PLT,AI

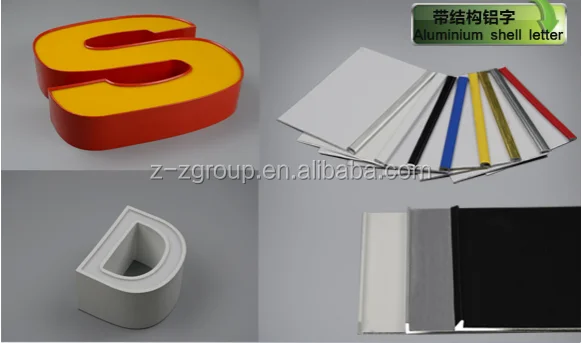

Application

For Aluminum Shell Channel Letter

=============================================================================================

For Resin Channel Letter

=============================================================================================

For Trimless Channel Letter

=============================================================================================

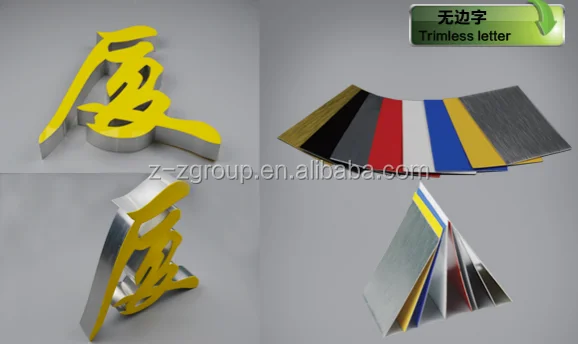

Finished samples from this CNC stainless steel bending machine


=============================================================================================

Packing & Delivery

Well Packed in Wooden Box

Delivery time:Within 15 days after payment.

Our Company

       Z-Z Group is a  large manufacturing company with multifield products,such as LED products,light


box,display product,advertising board,fabric,relective material,machine for products and


accessories.And most of the products can be customized for your design,for we have our own factory.We


have over 10 years of foreign trade and we're professional in exproting business.


       Our company and factory is located in Guangzhou Baiyun District,near the Baiyun Airport and


Huangpu Seaport,we welcome you to visit our base at anytime.



=============================================================================================
